Truma Combi 2E 4E 6E Water Boiler and Space Heater

Truma complete kit 3 for campervan and motorhome

The Truma Combi is a popular choice for heating both living space and water in your campervan, motorhome or caravan. The Truma Combi 2E, 4E and 6E are energy efficient, quiet in operation and incredibly compact and lightweight for the performance it delivers. The Truma complete kit 3 includes all the items needed for installation including a digital wall-mounted control panel which is iNet ready*. The Truma Combi features an integrated 10 litre stainless steel water tank. Suitable all year round, it allows for independent heating of hot water in summer mode as well as both hot water and warm air in winter mode. Able to operate on either 230V electric mains voltage or on LPG, it provides hot water, and a warm campervan, motorhome, or caravan, whether on a camping site, or in the wild. You can even use both electric and gas energy sources in unison for rapid heating times.

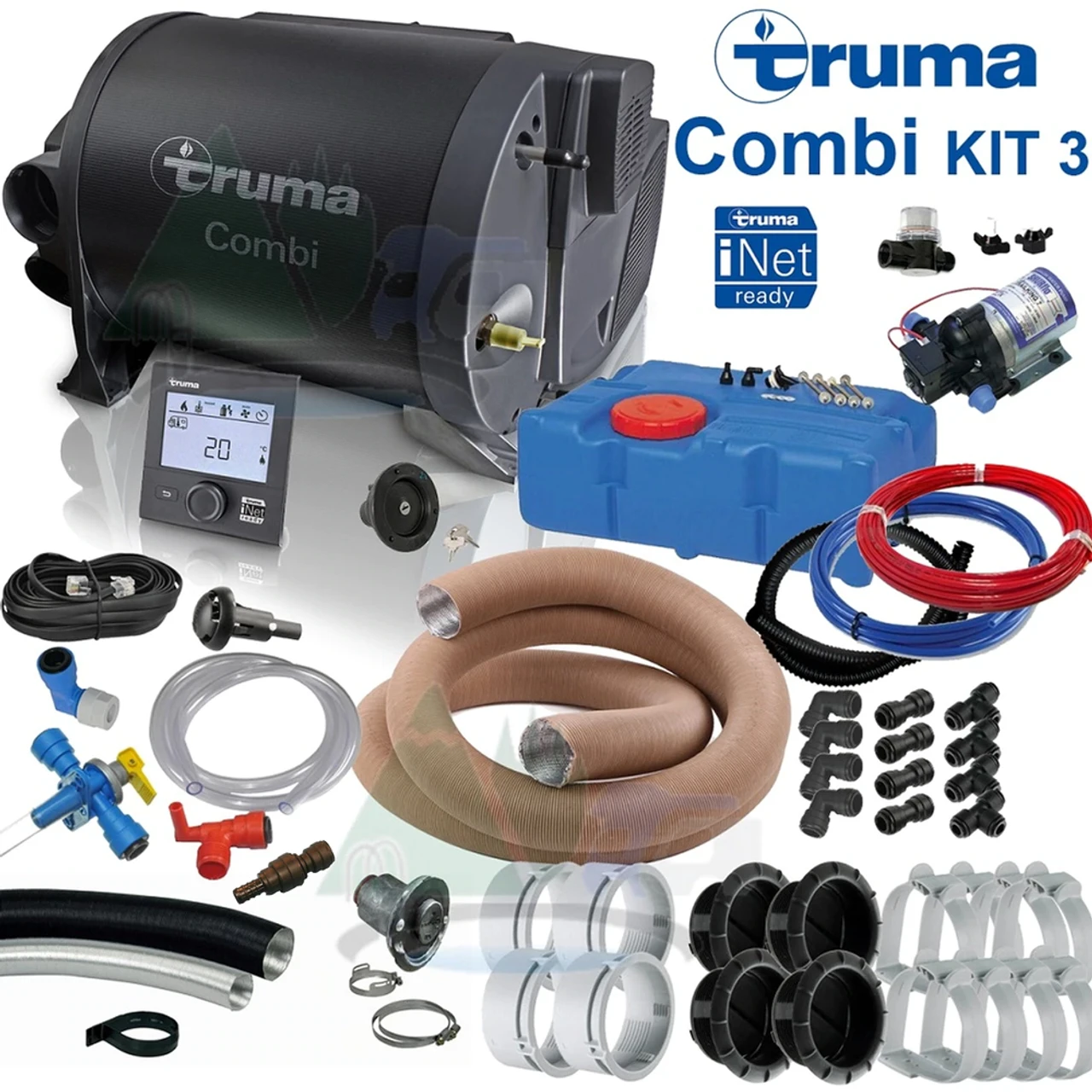

Truma Combi Kit 3 contains:

• Fiamma 70L on board water tank
• Fiamma locking filler cap
• 10m of 12mm push fit water hose blue
• 10m of 12mm push fit water hose red
• Truma Combi LPG gas and 230V electric unit
• Truma CP Plus digital wall mounted control panel
• Truma cowl cover – in black only
• 10m of 65mm heater ducting pipe
• 8 x Truma heating clips
• 4 x black Truma end outlets with throttle
• 4 x Truma blown air heating nut
• 6 x John Guest (push fit) tees
• 6 x 12mm John Guest straight
• 6 x 12mm John Guest elbows
• 1 x 055206 W4 Straight Water Pipe Adapter 12mm to 12mm – Barbed to Speedfit
• 5 x Jubilee clips
• Shurflo 30 PSI/12v/7L water pump
• 1m x 40mm water tank filler pipe (may be white or black)
• 1m x 10mm water pipe
• 1m x 12mm blue water pipe
• 1 x 12mm BSP adapter – John Guest 12mm Straight Female Adaptor
• 1 x 12mm John Guest Single Check Valve
• Shurflo Water Strainer and filter (threaded)

Truma Combi Technical Specification:

• Dimensions (L x W x H): 510 x 450 x 300 mm
• Installation dimensions (L x W x H): 540 x 500 x 350mm
• Weight (when empty of water): 15.1kg
• Water capacity: 10 litres
• Heating time (from 15°C to 60°C) (Water only): Approx. 20min.
• Heating time (from 15°C to 60°C) (Heater + Water): Approx. 80min.
• Water pressure: MAX 2.8 Bar
• Power consumption (at 230V): 3.9A / 7.8A
• Power consumption (at 12V): Heating up boiler 0.2A up to temporary max. of 5.6A (average approx. 1.1A)
• Air flow rate: Max. 287 m3/h

Truma Combi 2E:

• Rated thermal output (Electric): 980 W / 1960 W
• Rated thermal output (Gas): max. 1950 W
• Rated thermal output (Electric & Gas Combined): 3900 W
• Fuel consumption (Gas): 130 g/h

Truma Combi 4E:

• Rated thermal output (Electric): 900/1800W
• Rated thermal output (Gas): 2000/4000W,
• Rated thermal output (Electric & Gas Combined): 3800W

Truma Combi 6E:

• Rated thermal output (Gas): 2000/4000/6000W
• Rated thermal output (Electric): 900/1800W
• Rated thermal output (Electric & Gas Combined): 5800W
• Fuel consumption (Gas): 160–460 g/h

* To use the Truma iNet system with your Combi 2E, 4E and 6E you will need a Truma iNet controller available here.

With the addition of a Truma iNet system you can conveniently control the Combi from your mobile phone using Bluetooth via an app. Additionally, if you have a Truma air-conditioning unit installed, the control panel can automatically co-ordinate the heater and air conditioning unit to ensure your living space maintains a comfortable and controlled environment.
