Renogy 160 watt Solar Panels and MULTI Panel kits

The 160 watt flexible panels and MULTI kits from RENOGY are an ideal solution for keeping your leisure battery charged in your campervan, motorhome or caravan.

Choose from a standard 160 watt basic kit, or choose a 320 watt MPPT kit complete with all fixings required.

Flexibility

The Renogy 160 watt solar panels are the most flexible solar panels on the market, and can be flexed up to 248 degrees, which is very useful for curved motorhome or campervan rooves

Ultra Lightweight

The advanced polymer system employed by the RENOGY 160 watt solar means it is 70% lighter than campervan solar panels with comparable output.

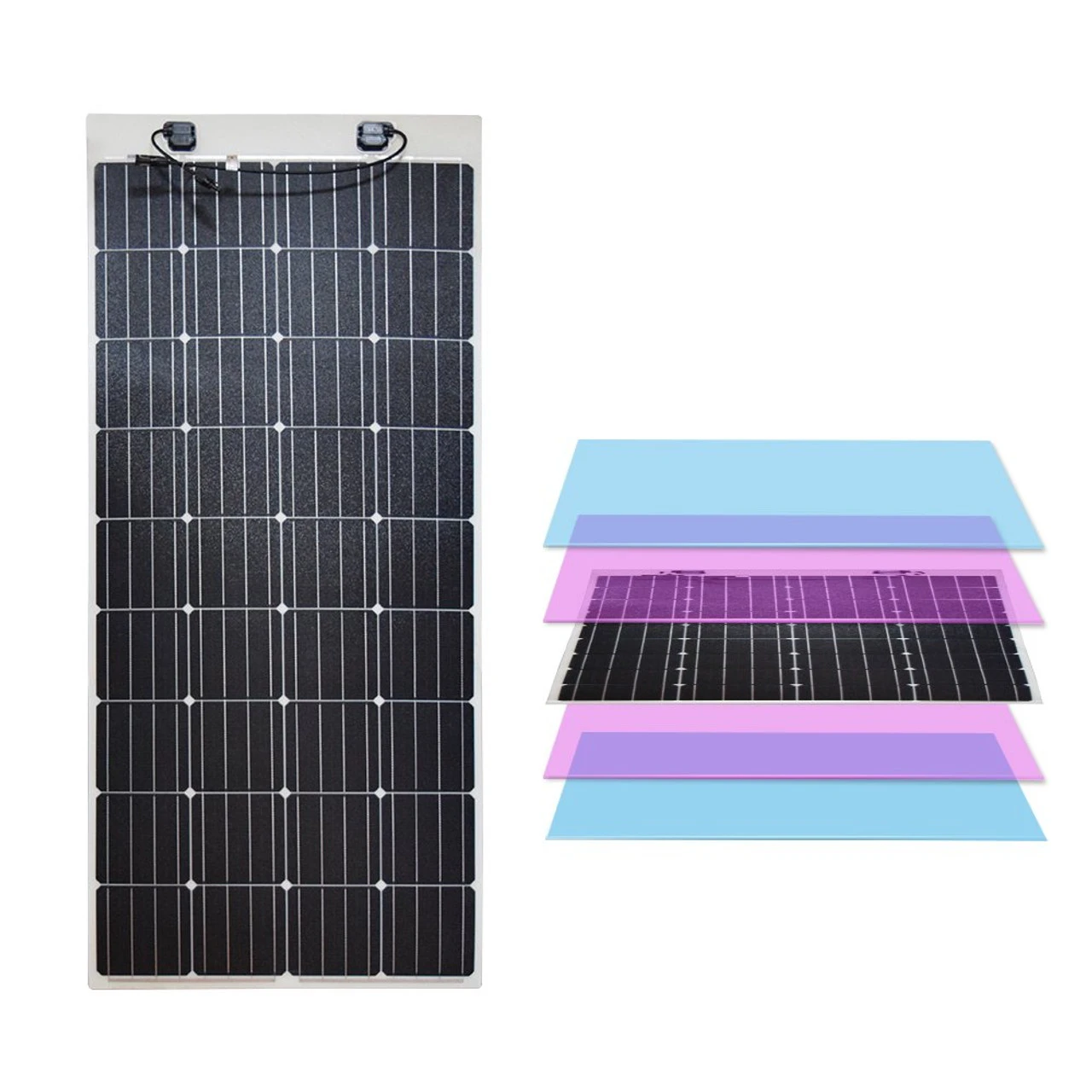

Super Thin Lamination

Discreet and thin, the Renogy 160W Lightweight Solar Panel is only a tenth of an inch thick. Approximately 95% thinner than its rigid counterpart, this panel is ideal for an easy installation to your campervan, motorhome or caravan.

Highly Durable

Rigorously tested, the 160W panel is designed to withstand extreme wind of up to 2400Pa and snow loads of up to 5400Pa and has undergone extensive hail tests.

PWM Controller or MPPT?

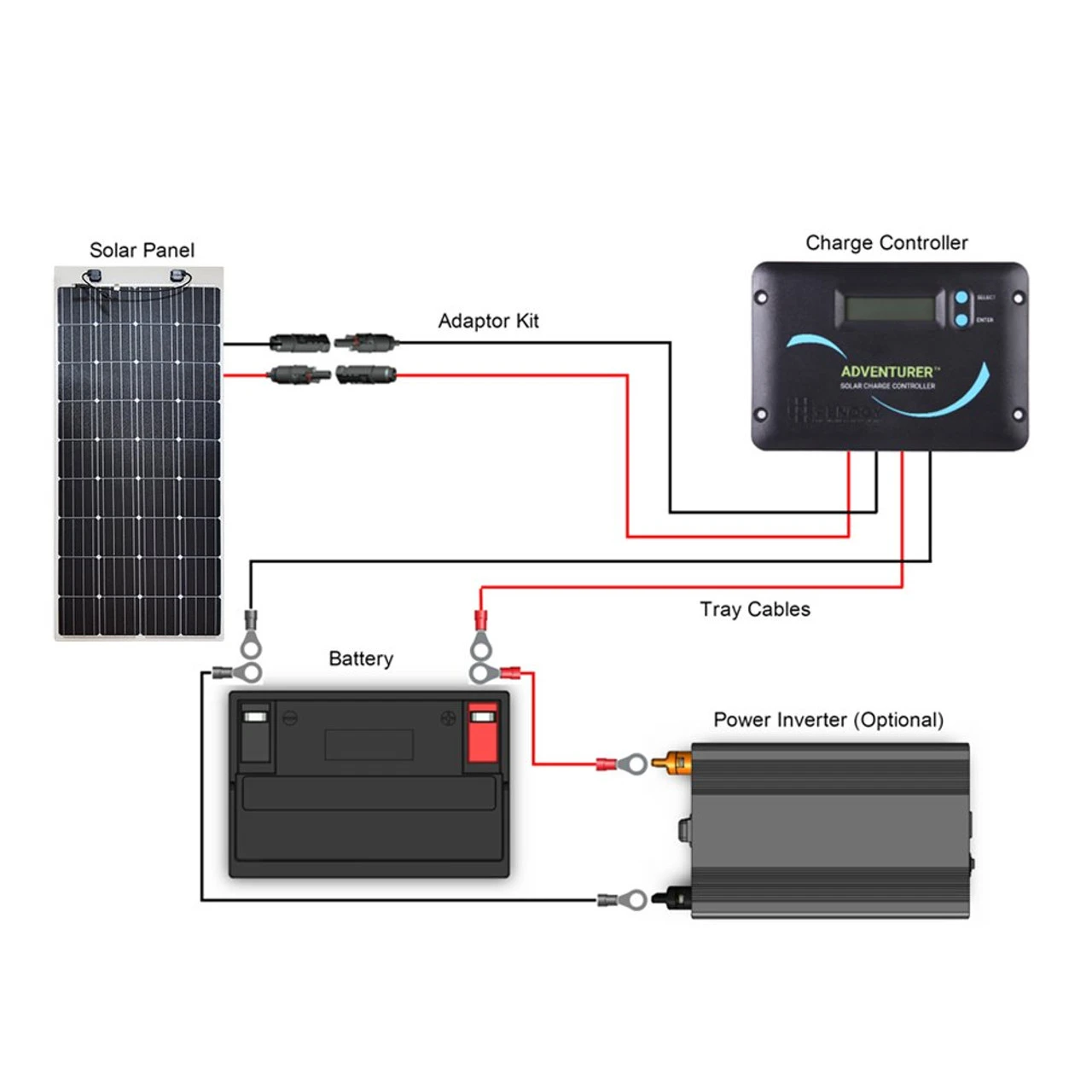

The PWM controller is in essence a switch that connects a solar array to a battery.

The result is that the voltage of the array will be pulled down to near that of the battery.

The MPPT controller is more sophisticated (and more expensive): it will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement, of the campervan caravan battery, plus load.

Features and Specifications

• Ultra lightweight polymer design 1.27 kilos
• Monocrystalline panel
• 160 watts
• Nominal Output per panel 6.59 amps per hour
• Open circuit voltage (VOC) 23.0 Volts DC
• less than 5% the weight of regular framed panels

Kit Combinations

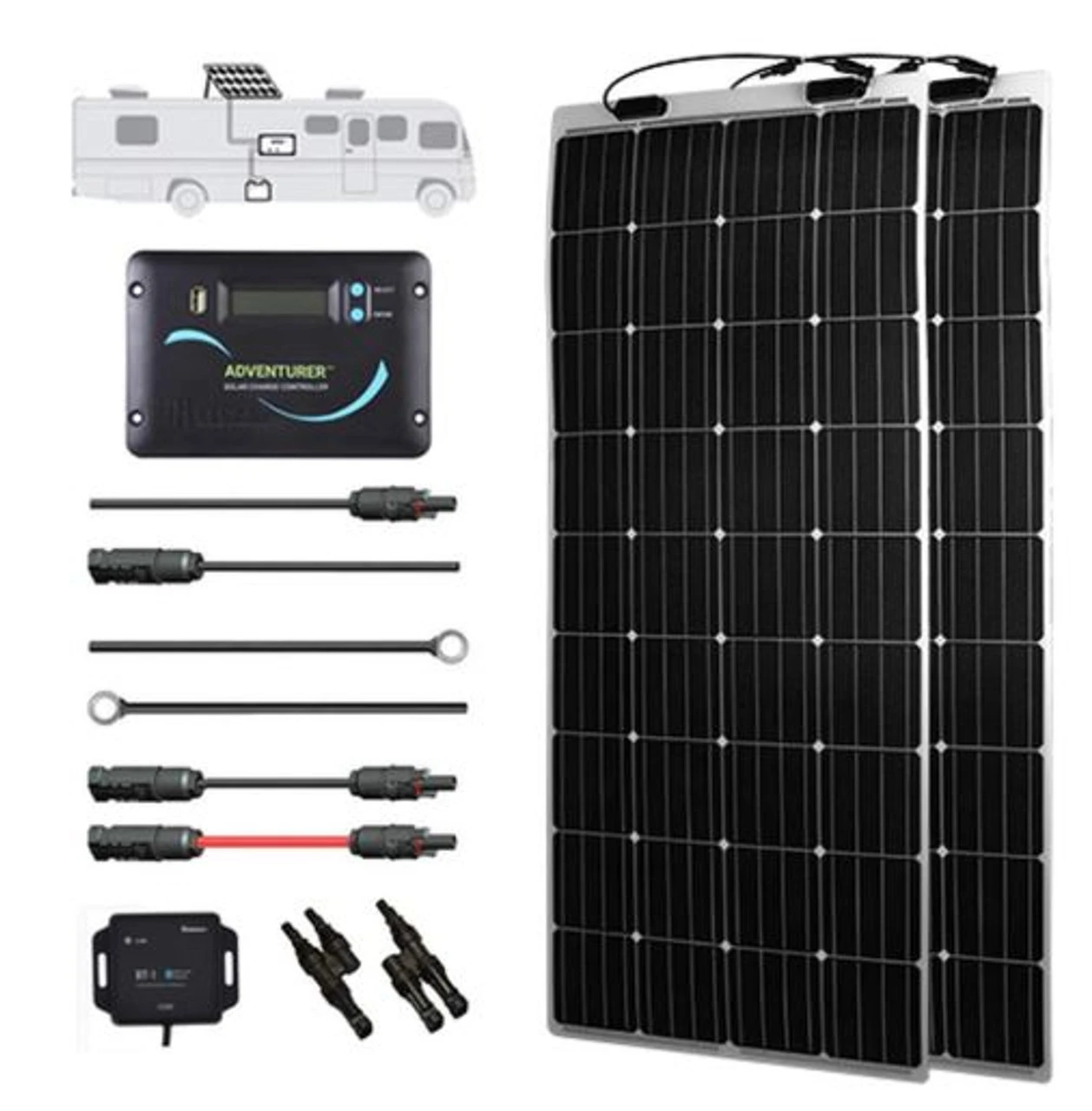

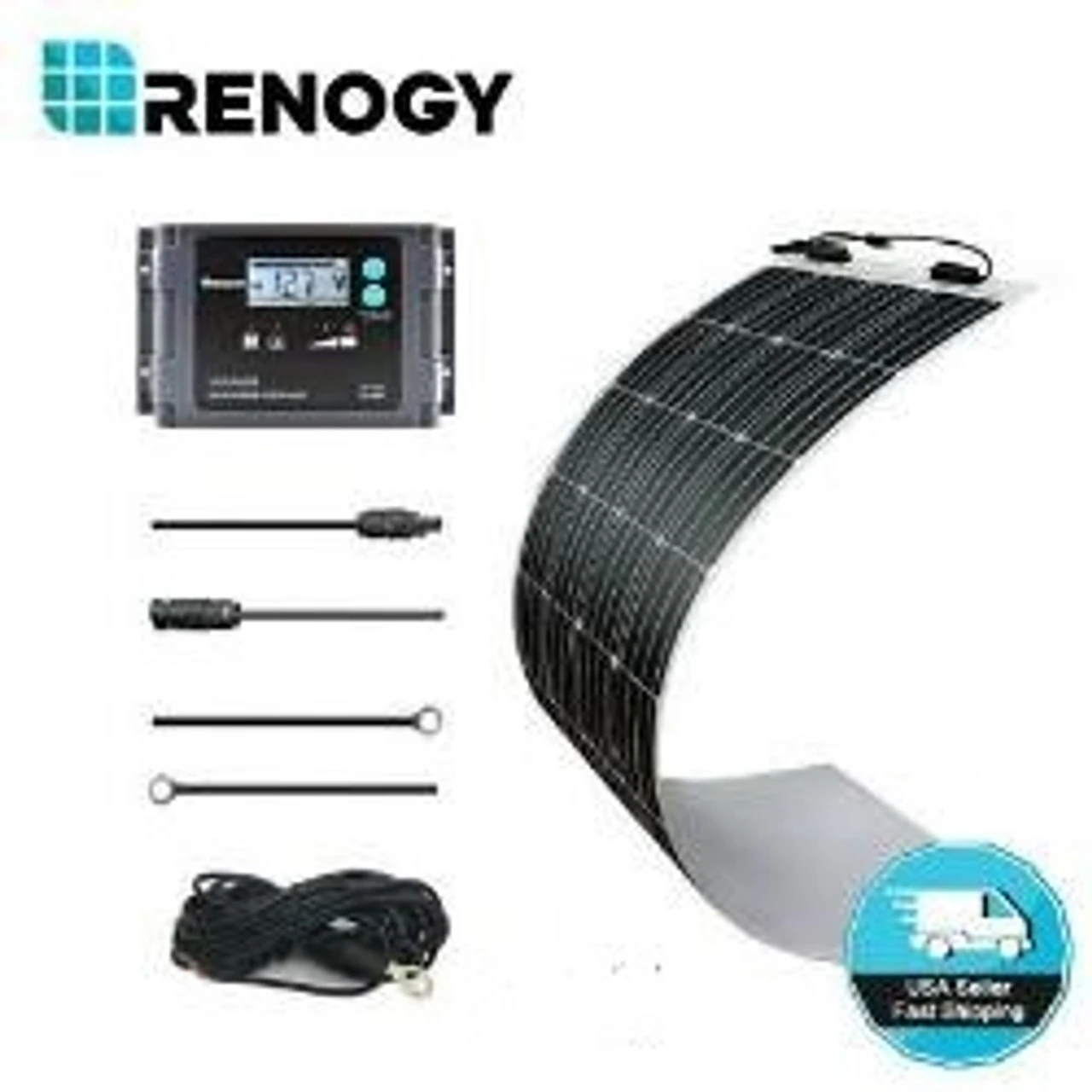

PWM Kit 1 comprises of:

• 1 x 160 watt RENOGY Flexible 160 Watt Solar Panel
• 1 x Roof Entry Grommet
• 1 x 10 Amp PWM Charge Controller
• 1 x Elastomer Bonding Agent
• 2 x 3 Metre Connection Cable (MC4)

PWM Kit 2 comprises of:

• 2 x 160 watt RENOGY Flexible 160 Watt Solar Panel
• 1 x Double Roof Entry Grommet
• 2 x MC4 Splitter Connectors
• 1 x 20 Amp Dual PWM Charge Controller
• 2 x Elastomer Bonding Agent
• 2 x 3 Metre Connection Cable (MC4)

MPPT Kit 1 comprises of:

• 1 x 160 watt RENOGY Flexible 160 Watt Solar Panel
• 1 x Roof Entry Grommet
• 1 x 10 Amp VICTRON MPPT Charge Controller
• 1 x Elastomer Bonding Agent
• 2 x 3 Metre Connection Cable (MC4)

MPPT Kit 2 comprises of:

• 2 x 160 watt RENOGY Flexible 160 Watt Solar Panel
• 1 x Double Roof Entry Grommet
• 2 x MC4 Splitter Connectors
• 1 x 20 Amp VICTRON MPPT Charge Controller
• 2 x Elastomer Bonding Agent
• 2 x 3 Metre Connection Cable (MC4)

 Panel Dimensions:

• (L) 1503mm x (W) 673mm x (D) 2.03mm
• Weight 2.81 Kg
