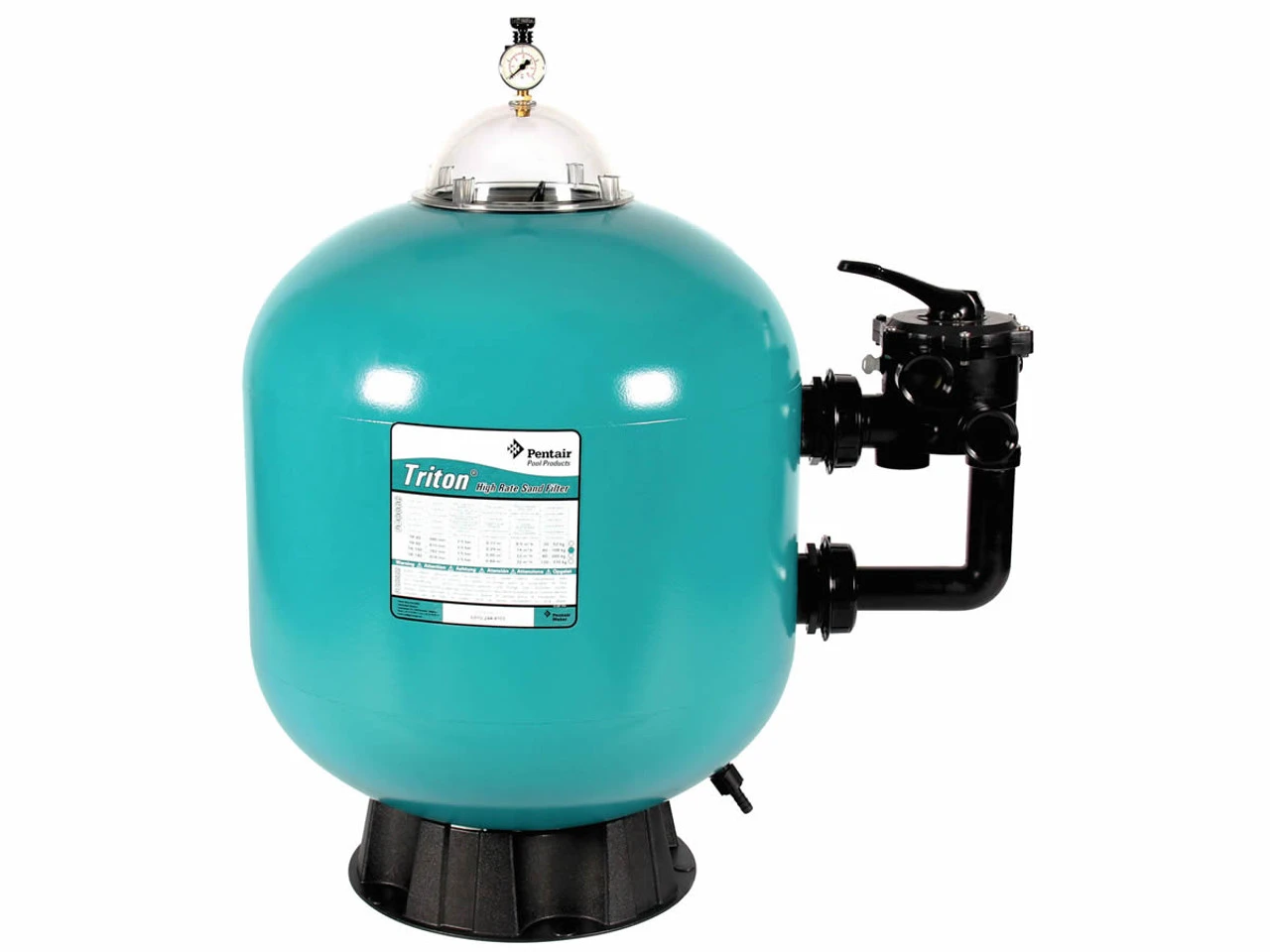

Pentair Triton Swimming Pool Sand Filter

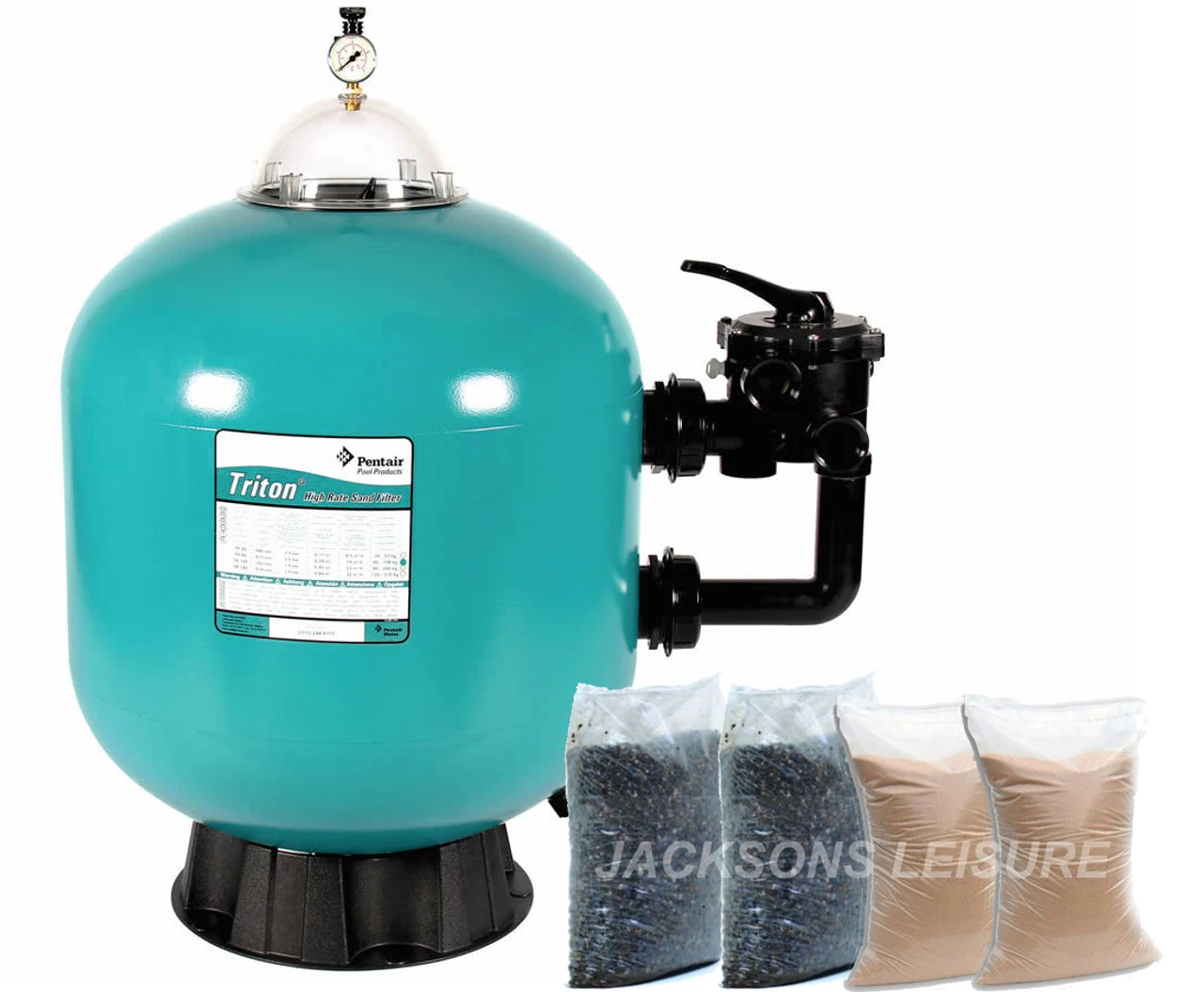

Featuring a pressure gauge, side mounted multiport valve and a large top mounted dome through which you can view the water (which comes in very useful when backwashing), the Pentair Triton Swimming Pool Sand Filter Barrel is available in 4 different sizes with or without filter media (please make your selection from the drop-down at the top of the page prior to checkout).
The Pentair Triton Sand Filter is suitable for both inground and above ground swimming pools.
|
Pentair Triton Sand Filter Barrel Technical Specification |
|||||
|
Reference |
Filter Size |
Flow Rate mΒ³/h |
Filter Area mΒ² |
Flange Connection |
Filter Price |
|
TR19 |
19″ |
8.5 |
0.17 |
1.5″ |
Β£585 |
|
TR24 |
24″ |
14 |
0.29 |
1.5″ |
Β£675 |
|
TR30 |
30″ |
22 |
0.45 |
2″ |
Β£995 |
|
TR36 |
36″ |
32 |
0.54 |
2″ |
Β£1350 |
Β
|
Pentair Triton Swimming Pool Sand Filter Filling Weights |
|||
|
Reference |
Sand Γ 0.35-0.5mm |
Gravel Γ 3.5mm |
Filter + Media |
|
TR19 |
50 kg |
25 kg |
Β£635 |
|
TR24 |
100 kg |
50 kg |
Β£765 |
|
TR30 |
200 kg |
75 kg |
Β£1165 |
|
TR36 |
325 kg |
125 kg |
Β£1595 |
Β
|
Pentair Triton Swimming Pool Sand Filter Dimensions |
||||
|
(mm) |
TR19 |
TR24 |
TR30 |
TR36 |
|
A |
825 |
955 |
1095 |
1200 |
|
B |
400 |
400 |
610 |
610 |
|
C |
480 |
610 |
762 |
914 |
|
D |
242 |
242 |
292 |
292 |
|
E |
110 |
110 |
150 |
150 |
|
F |
70 |
70 |
70 |
70 |
|
G |
463 |
530 |
590 |
657 |
|
H |
524 |
592 |
671 |
738 |
Β
Β
Β

Technical Specifications:
- Tank Warranty:
- 10 Years
